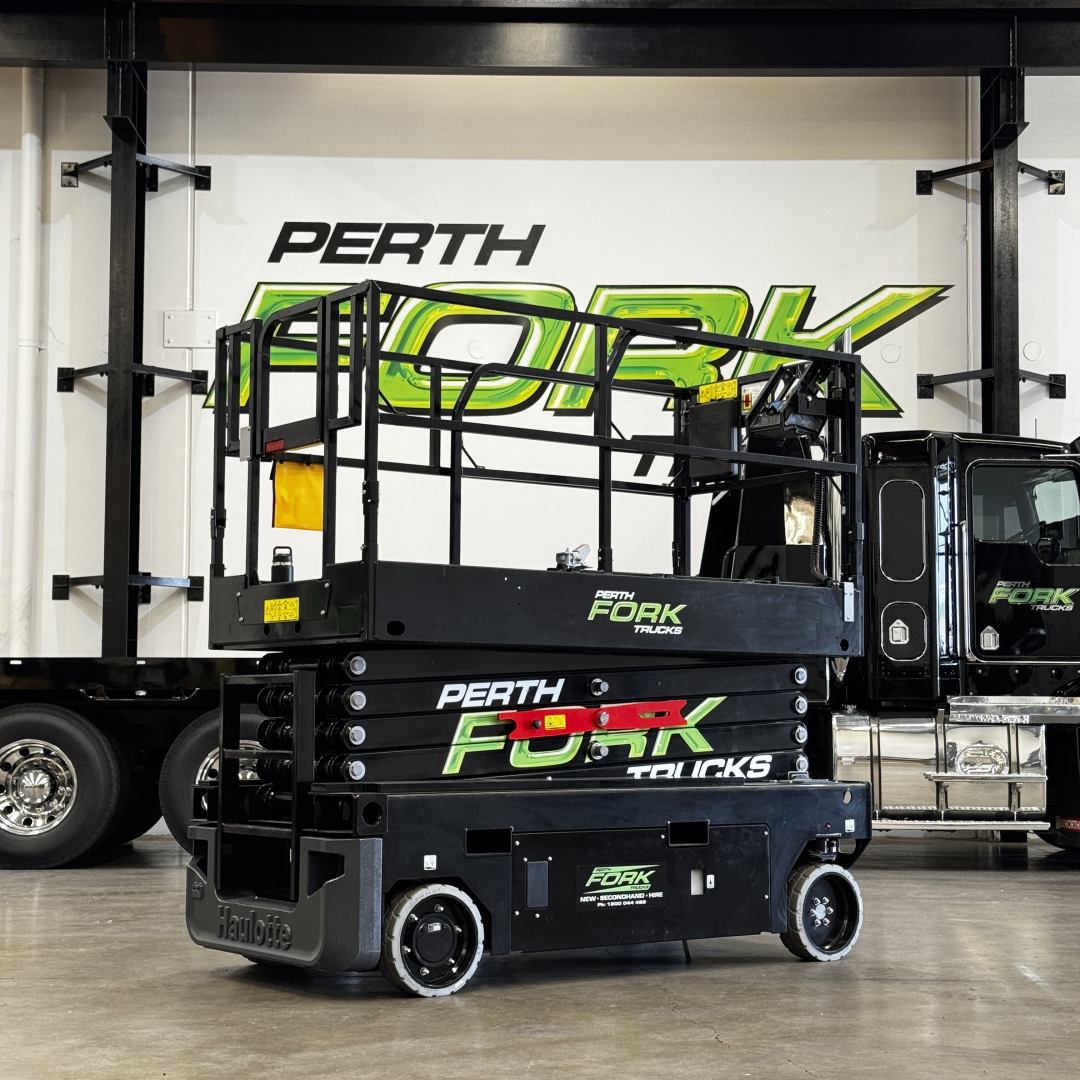

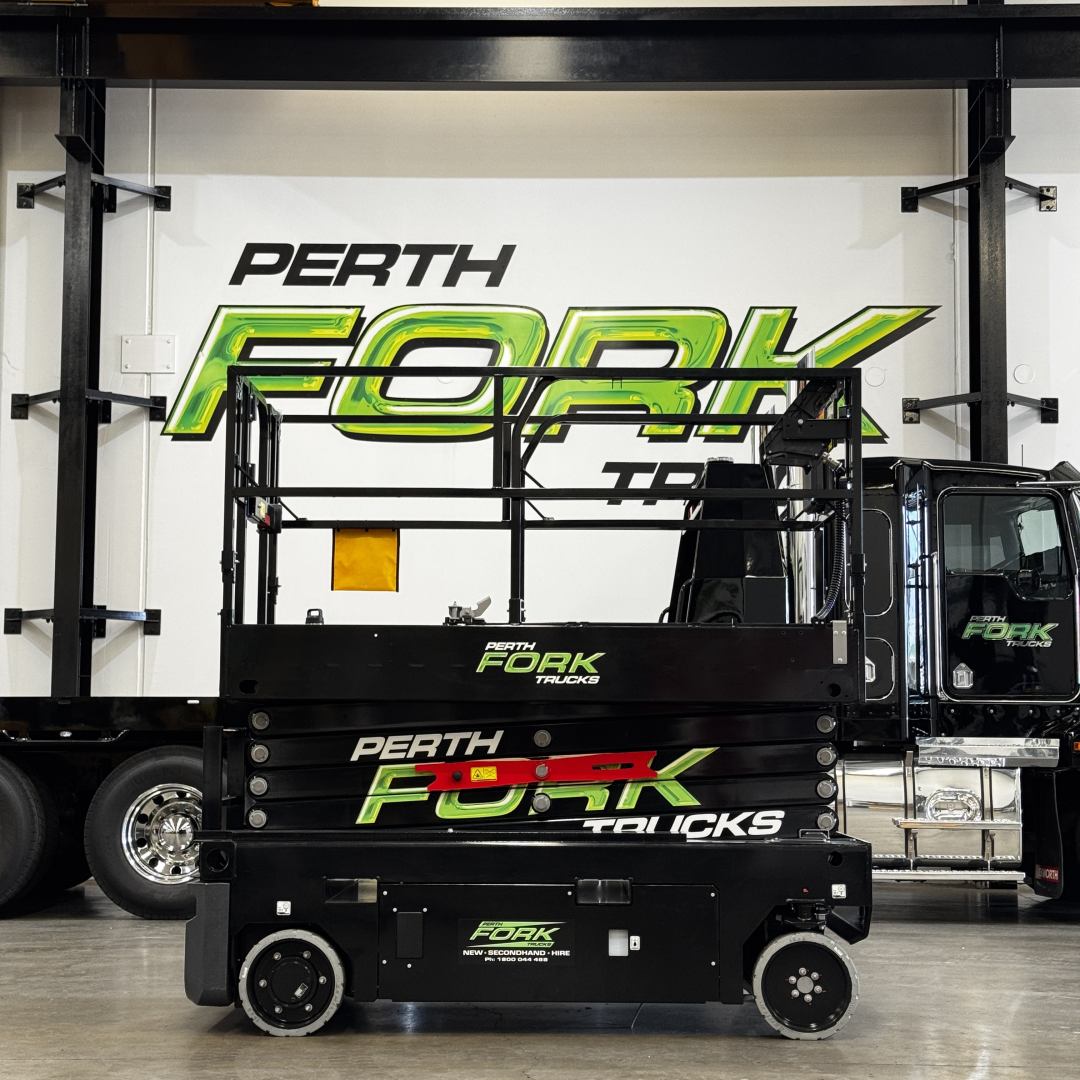

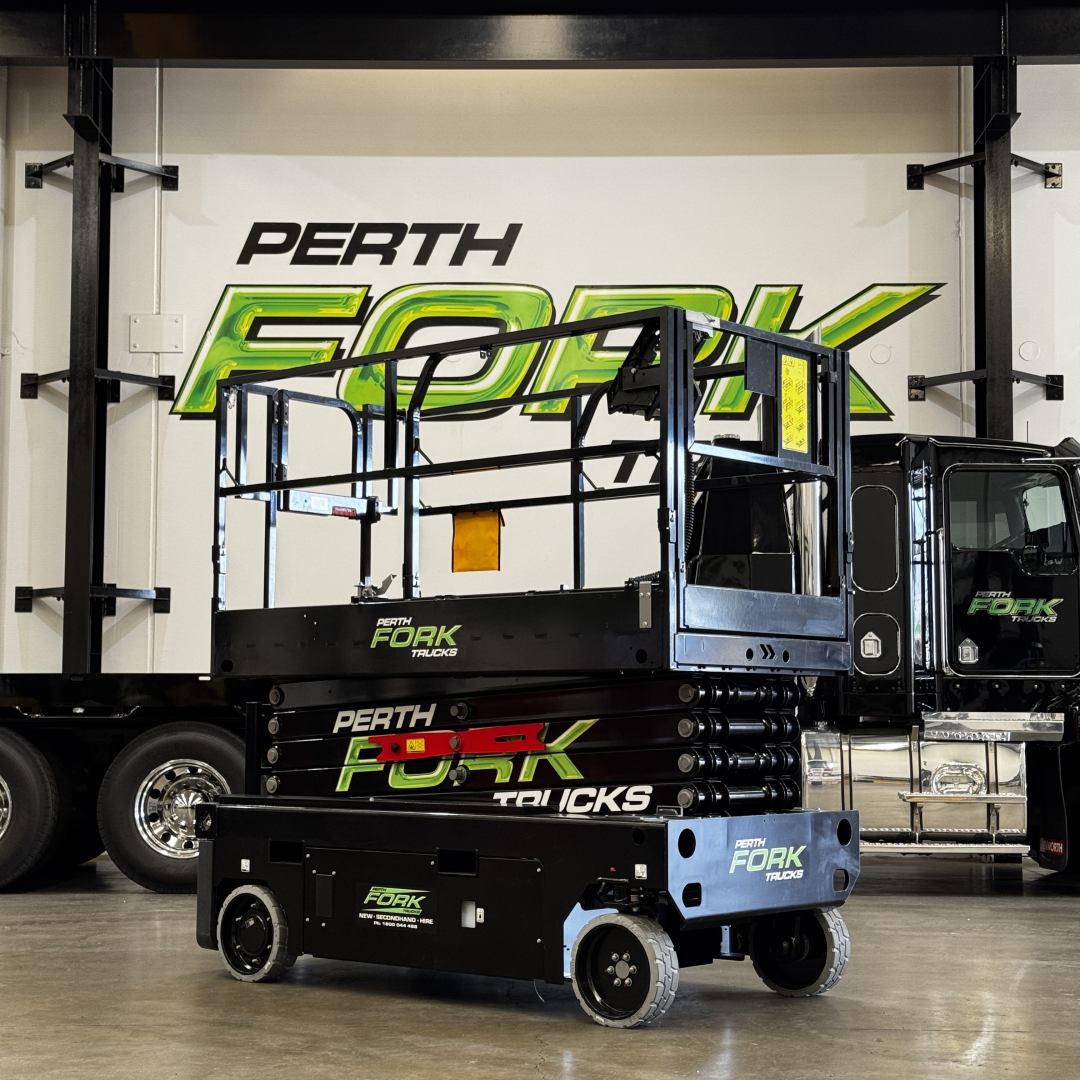

Haulotte 12M Scissor Lift - Custom Black

- Indoor/Outdoor

- Flat Even Ground Only

Specifications

- Working height: 11.75 m

- Platform height: 9.75 m

- Max. drive working height: 9.75 m

- Lift capacity - inside: 320 kg (3 pers.)

- Lift capacity - outside: 320 kg (1 pers.)

- Lift capacity on the extension deck: 120 kg

- Platform length - outside: 2.4 m

- Platform length - extended: 3.32 m

- Length - extension: 0.92 m

- Platform width - outside: 1.17 m

- Height - stowed: 2.47 m

- Guardrails lowered: 1.77 m

- Overall width: 1.20 m

- Length: 2.5 m

- Wheelbase: 1.86 m

- Ground clearance - center: 12.5 cm

- Ground clearance - deployed potholes: 2 cm

- Drive speed: 0.7 /1.5 / 4.2 km/h

- Gradeability: 25 %

- Tilt (lonitudinal / lateral): 3.5° / 1.5°

- Turning radius - outside: 1.83 m

- Non-marking tyres: 15 x 5

- Batteries: 24 V - 225 Ah (C20)

- Hydraulic system capacity: 14 l

- Weight: 2940 kg

- Micro drivespeed: 0 km/h

- Low drivespeed: 0 km/h

- Micro drivespeed: 0 km/h

- Low drivespeed: 0
